Shooting Bench Plans

Table Top - Step 3

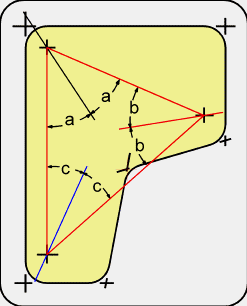

1) Draw a triangle that conects the three leg mounting points (shown in red in diagram).

2) For each corner of the triangle, draw a line that divides the angle into two equal angles.

Example: In the diagram at the left, a black line divides the top left corner of the triangle into two equal angles ' a '. Repeat for the other two corners. The leg mounts will be aligned with these center lines.
